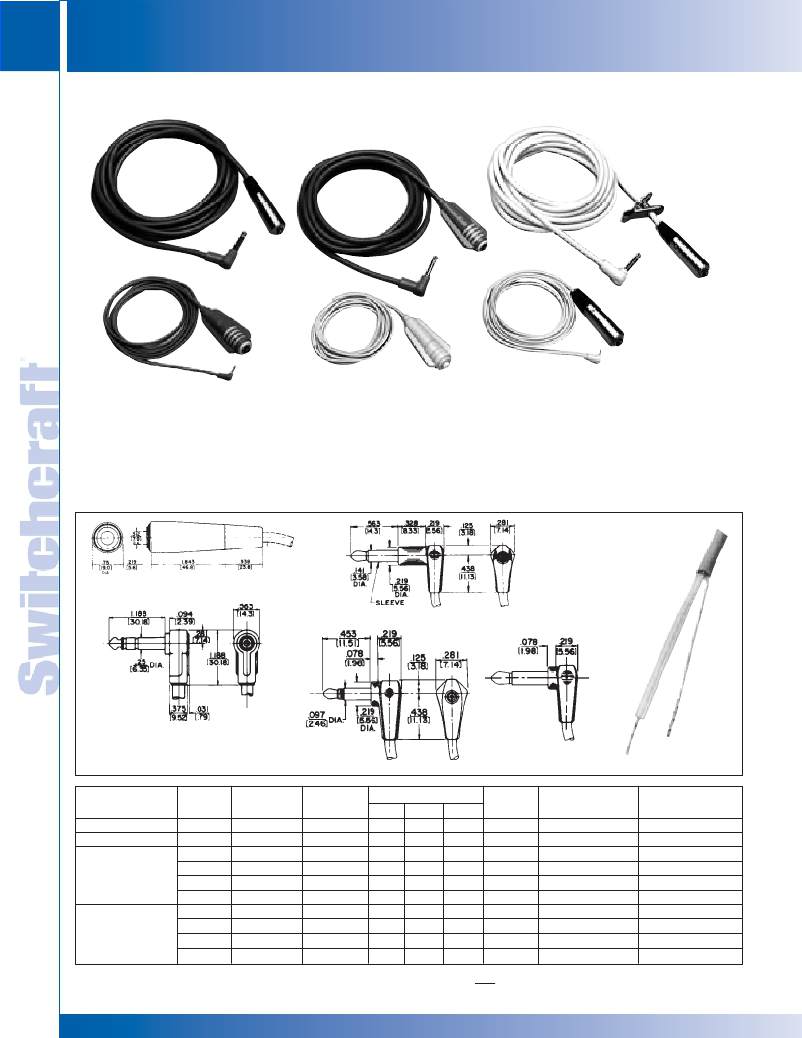

PATCH CORDS & MOLDED CABLE ASSEMBLIES
MOLDED CABLE ASSEMBLIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
CORDETTE ? AND CORD SWITCH ASSEMBLIES
97GVXXX06
99GD07261
99GVXXX04
97WVXXX06
(shown with
optional clip)
Also available
with 3.5 mm plug
finger termination.
99WD07284
FEATURES AND BENEFITS
? Momentary, 0.5 A switching combined with
1-piece molded plastic body qualifies Cordette for all types
of commercial and industrial usage.
? Available with molded-on Cordette switch or assembled
Cord switch (ED series).
? Cable features PVC outer jacket and withstands rugged use.
97WDXXX61
SPECIFICATIONS STYLE 97
Body: Series ED900
Housing: Die-cast zinc, satin nickel-plated.
Switch Body and Insert Bushing: H.H. Brass, nickel-plated.
Insulation: XXXP paper-base phenolic.
Cable Relief Bushing: Black neoprene.
Pressure Plates: Stainless steel.
Cable Relief Screws: Steel, nickel-plated.
SERIES ED900
TERMINATION CODE: 51
TERMINATION CODE: 06 , 07
(06 - 2 conductor not shown)
TERMINATION
TERMINATION
TERMINATION CODE: 61
CODE: 50
CODE: 84
DESCRIPTION
Example:
1st Term
Code
Housing &
Cable Color
CABLE
CODE
X
Cable Length (In.)
X X
2nd Term
Code
Circuitry
Button Color
Std. Cordette (921K)
99
G
V
0
7 7
84
Std. - 1A (No Code)
Std. Black (No Code)
ED903 Series
97
1 - 1B
H - Black
Standard Cable
Type for 1/4" Plugs
G-Gray
H-Black
V (W1230-1)
V (W1230-2)
.250"
.250"
PVC
PVC
18GA
18GA
06
07
2 - 1C
3 - AB
R - Red
W - White
B-Beige
W-White
V (W1230-4)
V (W1230-5)
.250"
.250"
PVC
PVC
18GA
18GA
Standard Cable
Types for Tini ? and
Micro Plugs
G-Gray
H-Black
W-White
H-Black
D (W1032-1)
D (W1032-2)
D (W1032-3)
E (W1065-2)
.109"
.109"
.109"
.100"
PVC
PVC
PVC
PVC
25GA
25GA
25GA
26GA
61
50
51
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
